Comparative insight invites a quiet sort of clarity: when designers weigh round‑trip efficiency (RTE) against footprint, cost, and operational resilience, layout choices often decide which trade-offs survive. In this spirit, manufacturers such as hithium energy storage have pushed configurations that prioritize low-loss DC routing and tighter thermal zones, because small gains in RTE compound across thousands of cycles. The question isn’t abstract—layout is where physics meets practice.
Why layout shapes RTE
RTE is more than a cell chemistry number; it’s the sum of resistive losses in cabling, inverter conversion loss, thermal control energy, and BMS-driven balancing. A layout that stretches the DC bus or forces repeated AC–DC conversions will bleed efficiency. High‑voltage systems can reduce current for a given power, shrinking I2R losses in conductors, but they demand different protection and insulation strategies. The geometry of racks, the distance to inverters, and even door placement all influence parasitic consumption and therefore the delivered RTE.
Side‑by‑side layout types: a comparative glance
Compare three common approaches:

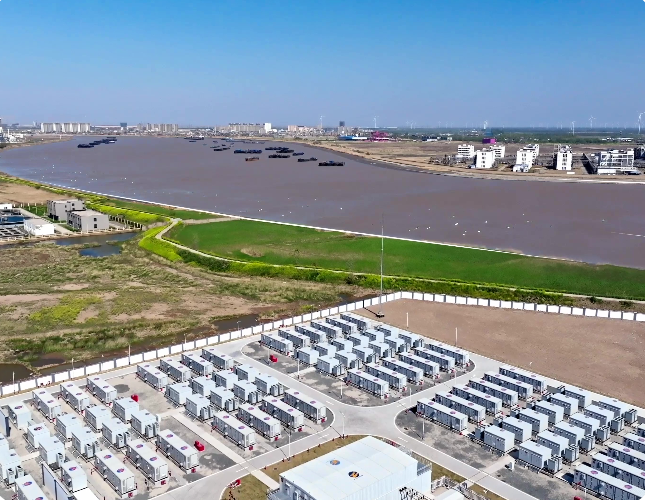

– Containerized modular: racks, inverter modules, and thermal plant are co‑located in standardized enclosures. Strength: predictable thermal zones, short internal DC runs. Weakness: constrained cooling options and potential inverter heat stacking.
– Central‑inverter field array: many rack clusters feed a centralized inverter hall. Strength: centralized maintenance and fewer inverters. Weakness: longer DC cabling and higher collection losses unless the DC architecture is optimized.
– Distributed DC‑coupled clusters: clusters with local DC–DC conditioning and smaller inverters near loads. Strength: resilience and lower conversion hopping. Weakness: higher component count and control complexity—trade-offs that influence effective RTE over lifetime.
Key engineering levers that tip the scale
Focus on three levers that repeatedly show up in comparative assessments: conductor routing, thermal management, and control topology. Reduce conductor length and use higher system voltage to cut resistive losses. Design thermal zones to limit active cooling—a well‑insulated, passive‑assisted approach can lower parasitic draw. And align the BMS and inverter control so balancing actions occur during low‑impact windows rather than during peak cycling. These are concrete levers; they reward disciplined layout execution.
Common mistakes and practical alternatives
Teams often chase lowest upfront cost and then retrofit around inefficiencies—an expensive habit. Typical missteps include oversized inverter siting far from battery halls, underestimating ventilation pathways, and using generic cabling runs rather than optimized high‑voltage bus ducts. For many battery energy storage system manufacturers, the better alternative is to model DC loss early, place power electronics to minimize hops, and prioritize scalable thermal corridors—little upfront design choices spare months of efficiency loss later.
There’s also a people angle—operations teams prefer layouts that make maintenance predictable and safe. Layout decisions that ignore human workflow amplify downtime. —A plant is a machine for people as much as for electrons.
Comparative cases and a real‑world anchor
Look to the Hornsdale Power Reserve in South Australia as a high‑visibility example: its initial design proved that rapid response and sustained cycles can coexist with strong effective RTE when power electronics and site layout are tuned to system needs. That project’s lessons echo in contemporary designs: siting inverters to reduce conversion stages, and emphasizing robust thermal control for lithium‑ion systems, materially improves delivered energy over time.
Advisory — three critical evaluation metrics for layout decisions
1) Net system RTE under duty cycle: model expected charge/discharge profiles and report system‑level RTE, not just cell nominal values. This reveals real delivered energy over calendar life. 2) Parasitic load fraction: quantify HVAC, control, and auxiliary power as a percentage of gross throughput—aim for the lowest sustainable fraction. 3) Maintenance accessibility score: evaluate expected mean time to repair influenced by layout; downtime directly reduces usable cycles and effective RTE.
These metrics guide procurement, engineering, and operations toward measurable outcomes rather than attractive specs on a data sheet.
In design and choice, the value becomes apparent: a layout that modestly raises RTE returns compounded energy and cost benefits across years, and when that alignment is done well it naturally complements the strengths of modern manufacturers such as battery energy storage system manufacturers. Thoughtful comparison yields clear priorities; the rest is disciplined execution.
HiTHIUM stands where layout thinking meets manufacturing depth — a practical bridge from concept to steady, efficient operation. —Final thought: measured design beats dramatic fixes every time.
